# 欢迎使用 IMR工业物联网平台
IMR工业物联网平台 是集web组态 时序数据库 数据采集 数据可视化分析的全功能平台
# 开始设计
# 设置画布属性

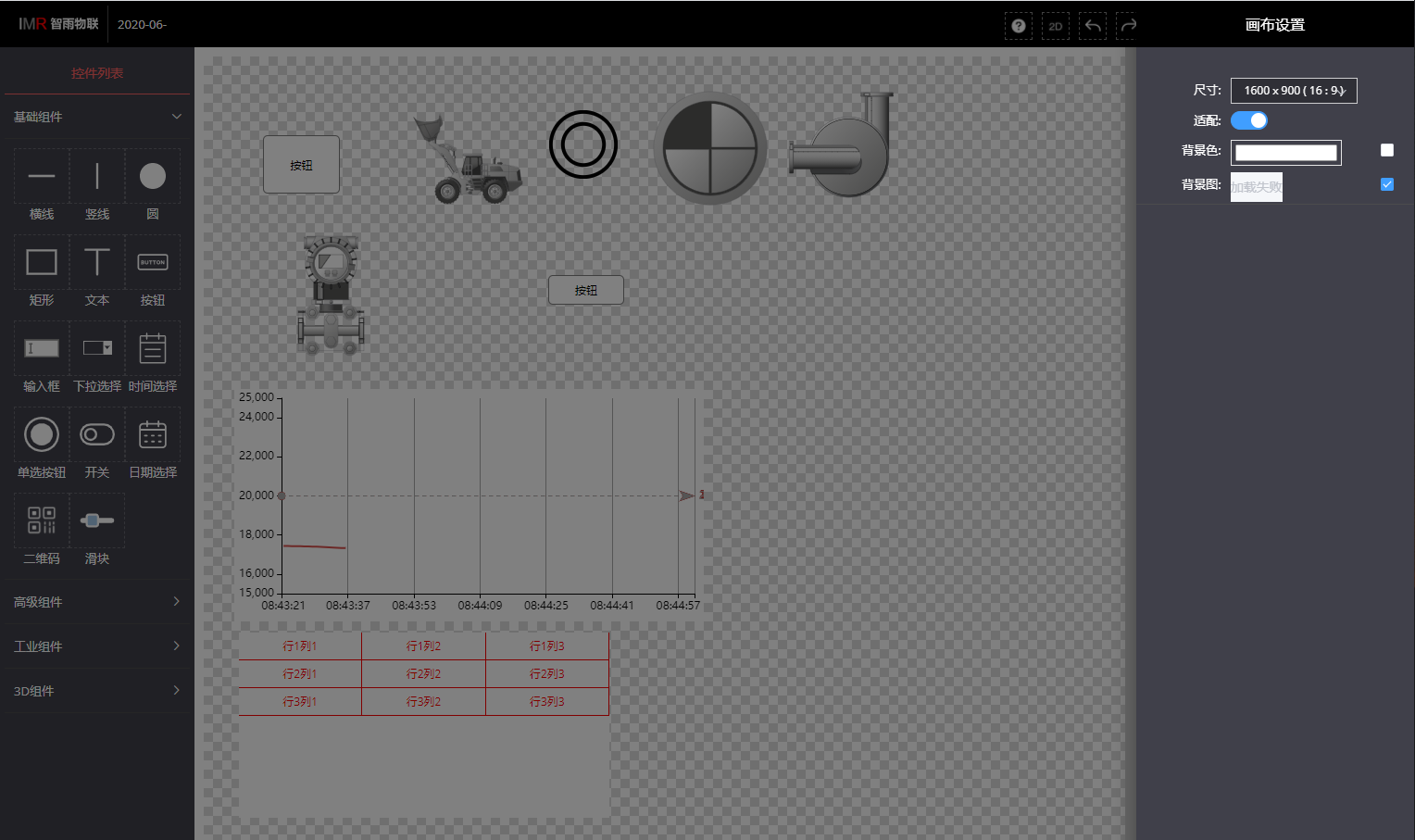

画布属性
首先我们先来设置画布进行设置,我们可以对设置多种分辨率
# 背景色 背景图片
# 创建组件

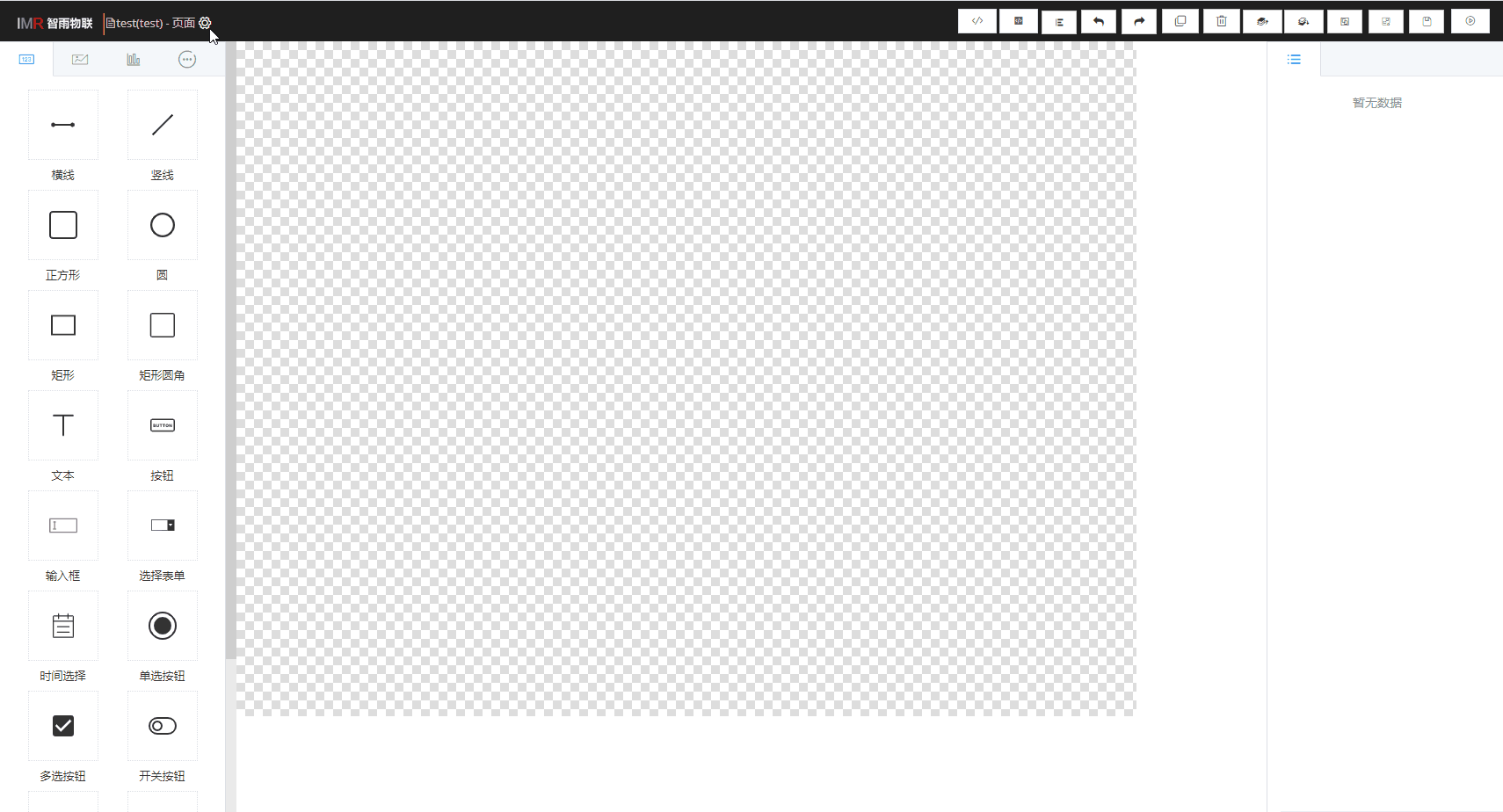

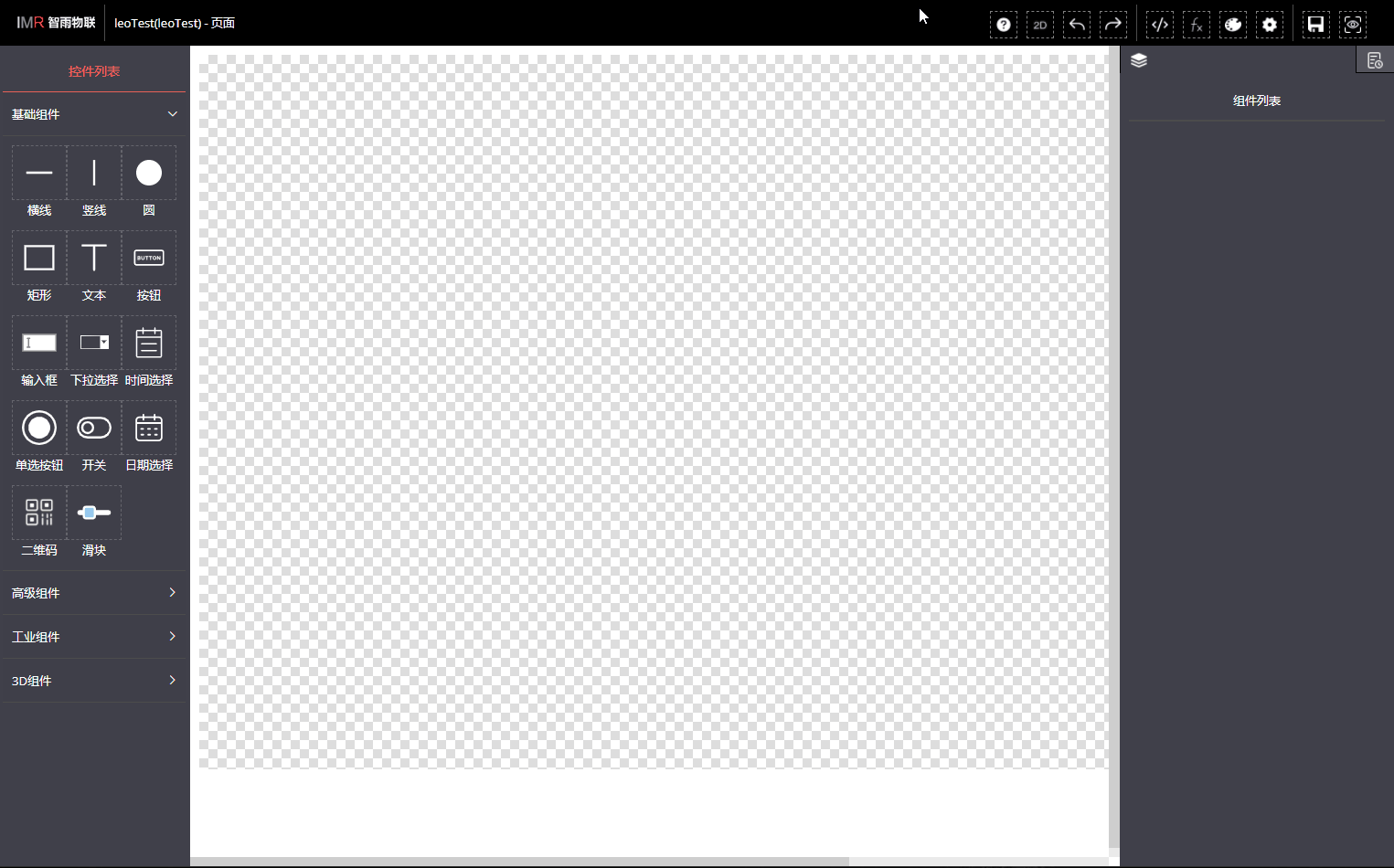

提示:用户只需在左边组件库中选择自己需要的组件,用鼠标拖拽到画布中即可使用
IMR工业物联网平台 提供了丰富的组件库,方便客户自由搭建自己的应用场景
# 基础组件
# 图形组件

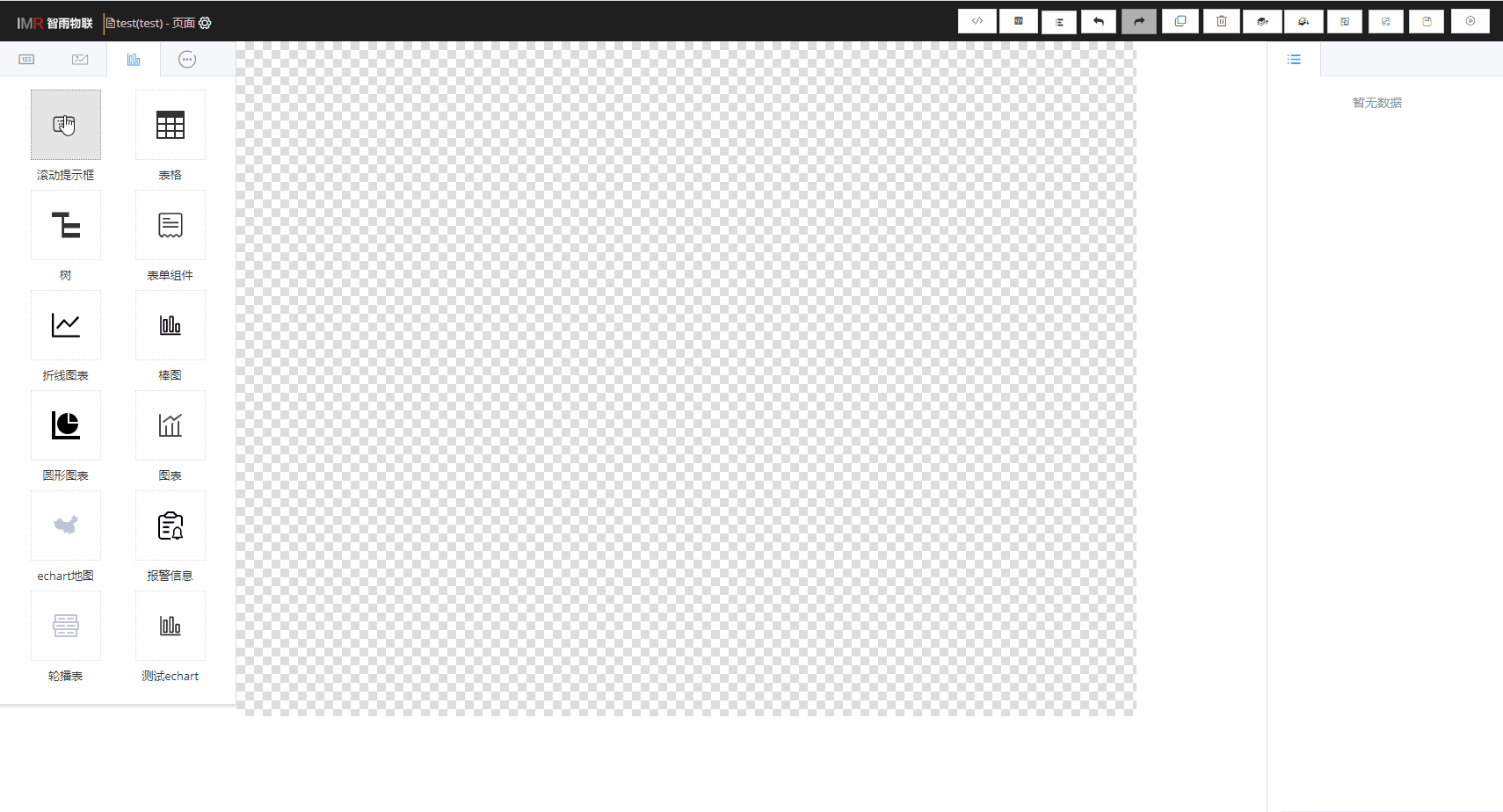

# 图表组件

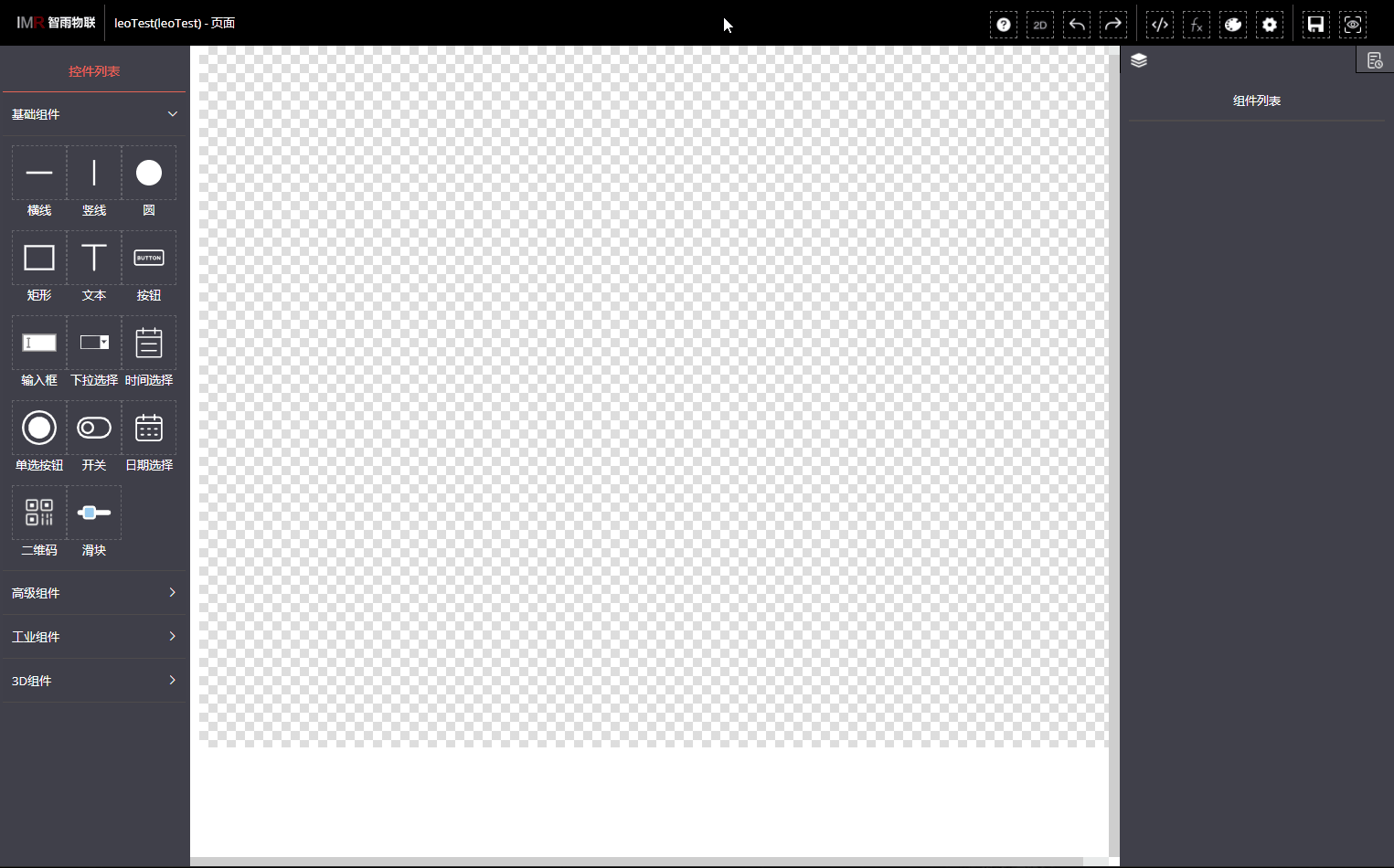

# 3D组件
# 使用组件
提示:
页面搭建功能,我们为大家提供了两个例子。更多案例可参考官网案例:DEMO (opens new window)为了更方便的让大家了解 IMR工业物联网平台
# 控制系统页面示例
# 数据展示页面搭建示例
# 组件属性及事件
# 组件基础属性
提示:
组件基础属性 commProp{}
标签 | 属性类型 | 属性分组 | 属性名 | 是否显示 | 默认值 |
---|---|---|---|---|---|
ID | propType.textinput.code | 通用 | commProp.id | false | null |
控件类型 | propType.textinput.code | 通用 | commProp.controlType | false | null |
分组 | propType.textinput.code | 通用 | commProp.group | null | null |
标识名 | propType.textinput.code | 通用 | commProp.name | null | null |
上边距 | propType.numberinput.code | 通用 | commProp.y | null | null |
左边距 | propType.numberinput.code | 通用 | commProp.x | null | null |
宽度 | propType.numberinput.code | 通用 | commProp.width | null | null |
高度 | propType.numberinput.code | 通用 | commProp.height | null | null |
是否可见 | propType.switch.code | 通用 | commProp.visible | null | ture |
是否闪烁 | propType.switch.code | 通用 | commProp.isFlash | null | false |
深度 | propType.numberinput.code | 通用 | commProp.depth | null | 5 |
旋转角度 | propType.numberinput.code | 通用 | commProp.angle | null | 0 |
边框宽度 | propType.numberinput.code | 通用 | commProp.borderwidth | null | 0 |
边框颜色 | propType.colorPicker.code | 通用 | commProp.bordercolor | null | red |
边框样式 | propType.select.code | 通用 | commProp.borderstyle | null | solid,dashed,dotted,double,groove,ridge |
背景色 | propType.colorPicker.code | 通用 | commProp.backgroundColor | null | "rgba(255, 255, 255, 0)" |
圆角 | propType.numberinput.code | 通用 | commProp.borderradius | null | null |
# 组件文本属性
提示:
组件文本属性 textProp{}
标签 | 属性类型 | 属性分组 | 属性名 | 是否显示 | 默认值 |
---|---|---|---|---|---|
文字 | propType.textinput.code | 文本编辑 | textProp.text | false | null |
字体 | propType.select.code | 文本编辑 | textProp.fontfamily | false | Microsoft YaHei,SimHei,SimSun |
字号 | propType.numberinput.code | 文本编辑 | textProp.fontsize | false | null |
粗体 | propType.textinput.code | 文本编辑 | textProp.fontweight | false | null |
斜体 | propType.textinput.code | 文本编辑 | textProp.fontitalic | false | null |
水平对齐 | propType.textinput.code | 文本编辑 | textProp.horizonalign | false | left,center,right |
垂直对齐 | propType.textinput.code | 文本编辑 | textProp.verticalalign | false | top,middle,bottom |
内间距 | propType.numberinput.code | 文本编辑 | textProp.padding | false | null |
字体颜色 | propType.colorPicker.code | 文本编辑 | textProp.fontcolor | false | null |
# 组件特殊属性
提示:
组件特殊属性 详见组件帮助
# 组件事件
提示:
组件事件属性
标签 | 属性类型 | 属性分组 | 属性名 | 是否显示 | 默认值 |
---|---|---|---|---|---|
点击事件 | codeinput | 事件属性 | onclick | false | null |
双击事件 | codeinput | 事件属性 | ondblclick | false | null |
鼠标按下事件 | codeinput | 事件属性 | onmousedown | false | null |
鼠标抬起事件 | codeinput | 事件属性 | onmouseup | false | null |
鼠标滑过事件 | codeinput | 事件属性 | onmouseover | false | null |
# 3D组件属性及事件
# 3D组件基础属性
提示:
3D组件基础属性 commProp{}
标签 | 子属性 | 属性类型 | 属性分组 | 属性名 | 是否显示 | 默认值 |
---|---|---|---|---|---|---|
ID | - | textinput | 通用 | commProp.id | false | null |
控件类型 | - | textinput | 通用 | commProp.controlType | false | null |
分组 | - | textinput | 通用 | commProp.group | false | null |
标识名 | - | textinput | 通用 | commProp.name | false | null |
是否可见 | - | switch | 通用 | commProp.isVisible | true | ture |
透明度 | - | numberinput | 通用 | commProp.visibility | true | 1 |
位置 | - | - | 通用 | commProp.position | false | {x:0,Y:0,z:0} |
- | x | numberinput | 通用 | commProp.position.x | true | 0 |
- | y | numberinput | 通用 | commProp.position.y | true | 0 |
- | z | numberinput | 通用 | commProp.position.z | true | 0 |
缩放 | - | - | 通用 | commProp.scaling | false | {x:0,Y:0,z:0} |
- | x | numberinput | 通用 | commProp.position.x | true | 1 |
- | y | numberinput | 通用 | commProp.position.y | true | 1 |
- | z | numberinput | 通用 | commProp.position.z | true | 1 |
旋转 | - | - | 通用 | commProp.rotation | false | {x:0,Y:0,z:0} |
- | x | numberinput | 通用 | commProp.position.x | true | 0 |
- | y | numberinput | 通用 | commProp.position.y | true | 0 |
- | z | numberinput | 通用 | commProp.position.z | true | 0 |
# 3D组件材质属性
提示:
3D组件材质属性 material{}
标签 | 属性类型 | 属性分组 | 属性名 | 是否显示 | 默认值 |
---|---|---|---|---|---|
颜色 | colorPicker | 材质 | material.diffuseColor | true | #00FF00 |
透明度 | numberinput | 材质 | material.alpha | true | 1 |
纹理 | imgSelect | 材质 | material.diffuseTexture | true | null |
控件纹理 | domSelect | 材质 | material.htmlTexture | true | null |
# 3D组件事件属性
提示:
3D组件事件属性
标签 | 属性类型 | 属性分组 | 属性名 | 是否显示 | 默认值 |
---|---|---|---|---|---|
点击事件 | codeinput | 事件属性 | OnPickTrigger | false | null |
双击事件 | codeinput | 事件属性 | OnDoublePickTrigger | false | null |
鼠标按下事件 | codeinput | 事件属性 | OnPickDownTrigger | false | null |
鼠标抬起事件 | codeinput | 事件属性 | OnPickUpTrigger | false | null |
鼠标滑过事件 | codeinput | 事件属性 | OnPointerOverTrigger | false | null |
# 页面脚本应用
提示:
设计器提供给用户javascript脚本函数功能,方便用户自由的控制组件及与第三方应用对接。
# 设计器脚本基础方法
提示:
设计器提供的基础方法全部属于imr类,用户可以直接使用该功能。
# 获取组件属性值
提示:
用户可通过imr.getModelByName方法获取设计中任意组件的属性参数。
//方法名:getModelByName
//参数:modelName 为 string 类型
//参数:tagName 为 string 类型 子页面标识名(父页面不填)
imr.getModelByName(modelName, tagName)
//获取组件 旋转角度
var angleValue = imr.getModelByName('需要获取组件标识名').commProp.angle
//通过设置组件数据 让其闪烁
imr.getModelByName('需要获取组件标识名').commProp.isFlash = true
//设置组件文本
imr.getModelByName('需要获取组件标识名').textProp.text = hello!
# 获取3D组件属性值
提示:
用户可通过imr.get3DModelByName方法获取设计中任意组件的属性参数。
//get3DModelByName
//参数:modelName 为 string 类型
//参数:tagName 为 string 类型 子页面标识名(父页面不填)
imr.get3DModelByName(modelName, tagName)
//获取组件 旋转角度
var positionX = imr.get3DModelByName('需要获取组件标识名').commProp.position.x
//通过设置组件数据 沿X坐标移动
imr.get3DModelByName('需要获取组件标识名').commProp.position.x = 50
//设置3D组件是否显示
imr.get3DModelByName('需要获取组件标识名').commProp.visible = true
# 获取数据库信息
提示:
用户可通过imr.SQL方法,访问预先配置好的SQL数据库,目前支持MySql MSSql oracle等。
//方法名:SQL
//参数:DbName 数据库名称 String类型
//参数:sql sql语句 String类型
//使用方法
imr.SQL(dbName,sql,(ro)=>{
console.log('打印数据', ro.Result)
//需要操作的任务
}, (err)=>{
console.log('打印数据', err)
//错误回调
})
# 获取协议及内部变量
提示:
用户可通过imr.SIMDATA方法,获取系统配置好的协议及内部变量。
//方法名:SIMDATA
//参数:variables 变量code数据 String[]类型
//参数:isCalvValue 获取变量原始值或计算值 bool类型
//使用方法
imr.SIMDATA(variables,isCalvValue=true,(ro)=>{
console.log('打印数据', ro)
//需要操作的任务
}, (err)=>{
console.log('打印数据', err)
//错误回调
})
# 赋值协议及内部变量
提示:
用户可通过imr.BATCHWRITE方法,赋值系统配置好的协议及内部变量。
//方法名:BATCHWRITE
//参数:variables 变量code数据 String[]类型
//参数:values 获取变量原始值或计算值 String[]类型
//使用方法
imr.BATCHWRITE(variables,values,(ro)=>{
console.log('打印数据', ro.Result)
//需要操作的任务
}, (err)=>{
console.log('打印数据', err)
//错误回调
})
# 获取协议及内部变量归档数据
提示:
用户可通过imr.ARCHIVEDATA方法,获取系统配置好的协议及内部变量归档数据。
//方法名:ARCHIVEDATA
//参数:variables 变量code数据 String[]类型
//参数:startTime 归档数据起始时间 String类型
//参数:endTime 归档数据结束时间 String类型
//使用方法
imr.ARCHIVEDATA(variables,startTime,endTime,(ro)=>{
console.log('打印数据', ro.Result)
//需要操作的任务
}, (err)=>{
console.log('打印数据', err)
//错误回调
})
# 获取报警变量归档数据
提示:
用户可通过imr.ALARMDATA方法,获取系统配置好的报警变量归档数据。
//方法名:ALARMDATA
//参数:variables 变量code数据 String[]类型
//参数:startTime 归档数据起始时间 String类型
//参数:endTime 归档数据结束时间 String类型
//使用方法
imr.ALARMDATA(variables,startTime,endTime,(ro)=>{
console.log('打印数据', ro.Result)
//需要操作的任务
}, (err)=>{
console.log('打印数据', err)
//错误回调
})
# 弹出页面
提示:
用户可通过imr.creatForm方法,弹出页面。
//方法名:creatForm
//参数:code 页面code String类型
//参数:title 标题(可无) String类型
//参数:callback 回调(可无) function
//参数:sizeOption css样式(可无) object {width:0,height:0, headCss:{(写css)}}
//使用方法
imr.creatForm(code, title, ()=>{
}, sizeOption, name)
例: imr.creatForm('dataAnalysis', '弹出页面', null, {width:1200,height:1200})
# 关闭弹出页面
提示:
用户可通过imr.deleteForm方法,关闭弹出页面。
//方法名:deleteForm
//参数:code 页面code String类型
//使用方法
imr.deleteForm(code)
# 导出excel
提示:
用户可通过imr.exportExcel方法,导出excel。
//方法名:exportExcel
//参数:data 数据 数组(如 [{a:1,b:1},{a:2,b:2}]
//参数:fileName 名称 String
//使用方法
imr.exportExcel(data,fileName)
# 引入excel
提示:
用户可通过imr.importExcel方法,引入excel。
//方法名:importExcel
//参数:callback(ro) function
//使用方法
imr.importExcel((ro)=>{
console.log(ro)
})
# 浏览器窗口改变触发方法
提示:
用户可通过imr.pageResize方法,响应浏览器窗口。
//方法名:pageResize
//参数:callback(ro) 回调 function
//使用方法
imr.pageResize((ro)=>{
console.log(ro)
})
# 计时器
提示:
用户可通过imr.setTimeout方法,用于计时器方法。
//方法名:setTimeout
//使用方法
imr.setTimeout(()=>{
console.log()
}, ms)
# 时间
提示:
用户可通过imr.getDate方法,获取时间。
//方法名:getDate
//参数:fmtStr 格式(可无) String类型
//参数:date 时间对象(可无) object
//使用方法
imr.getDate(fmtStr, date)
# MyTask(线程)
提示:
用户可通过imr.MyTask方法,创建新线程。
//方法名:MyTask
//参数:fmtStr 格式(可无) String类型
//参数:date 时间对象(可无) object
//使用方法
function demo() {
function f() {
var time = new Date()
// 发送数据
postMessage(time.getTime());
setTimeout(f, 50);
}
f();
}
var task = new imr.MyTask(demo, (ro)=>{
// 接收数据
})
task.start() // 开始
task.end() // 结束
# 光晕(3D)
提示:

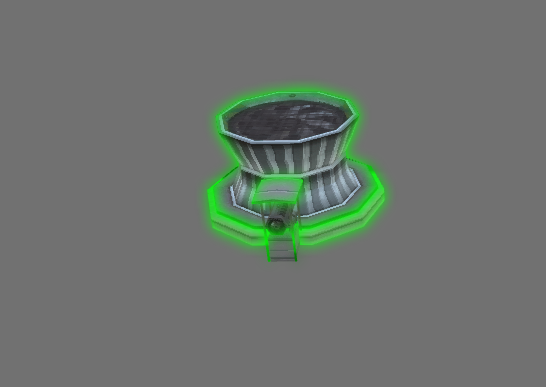

用户可通过imr.highlightLayer方法,让模型显示光晕。
//方法名:imr.highlightLayer 光晕
//参数1:meshName 模型名称[string]
//参数2:color 光晕颜色[string]('#00FF00')
//参数3:scene 场景[object](_scene)
//使用方法
imr.highlightLayer(meshName,color,size,scene)

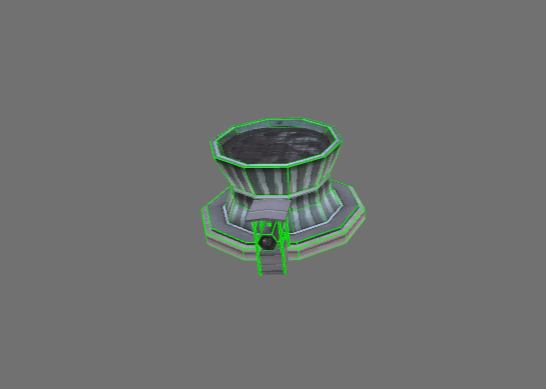

# 边框高亮(3D)
提示:
用户可通过imr.edgesWidth方法,让模型边框高亮。
//方法名:imr.edgesWidth 边框高亮
//参数1:meshName 模型名称[string]
//参数2:color 边框颜色[string]('#00FF00')
//参数3:size 边框宽度[number](3)
//参数4:scene 场景[object](_scene)
//使用方法
imr.edgesWidth(meshName,color,size,scene)
# 警告(3D)
提示:

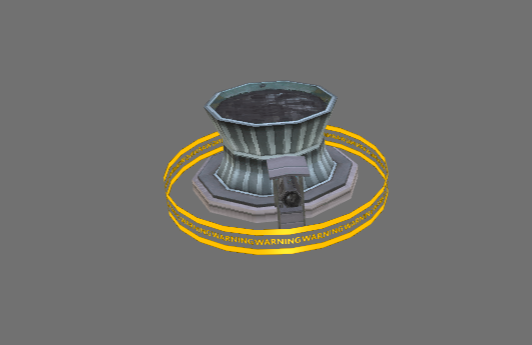

用户可通过imr.mappingTexture方法,让模型显示警告图案。
//方法名:imr.mappingTexture 警告
//参数1:meshName 模型名称[string]
//参数2:type 1矩形 2圆形[number](1)
//参数3:scene 场景[object](_scene)
//使用方法
imr.mappingTexture('',2, _scene)

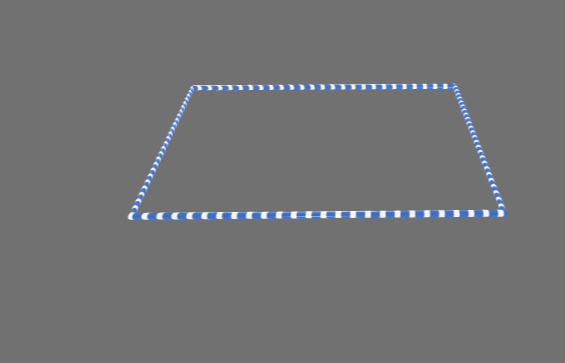

# 划线流动(3D)
提示:

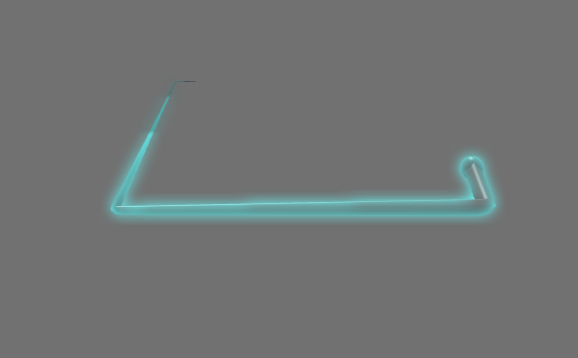

用户可通过imr.creatline方法,创建流动线条。
//方法名:imr.creatline 划线流动
//参数1:path 路径[array]]
//参数2:radius 线半径[number](0.05)
//参数3:scene 场景[object](_scene)
//使用方法
var path = [
imr.Vector3(5, 0, 5),
imr.Vector3(-5, 0, 5),
imr.Vector3(-5, 0, -5),
imr.Vector3(5, 0, -5),
imr.Vector3(5, 0, 5)
];
imr.creatline(path,0.1,_scene)
# 轨迹流动(3D)
提示:
用户可通过imr.particleSystem方法,创建轨迹流动。
//方法名:imr.particleSystem 轨迹流动
//参数1:path 路径[array]]
//参数2:radius 大小[number](0.15)
//参数3:color 颜色[string]('#FFFFFF')
//参数4:scene 场景[object](_scene)
//使用方法
var path = [
imr.Vector3(5, 0, 5),
imr.Vector3(-5, 0, 5),
imr.Vector3(-5, 0, -5),
imr.Vector3(5, 0, -5),
imr.Vector3(5, 0, 5)
];
imr.particleSystem(path,0.1,'#66FFFF')

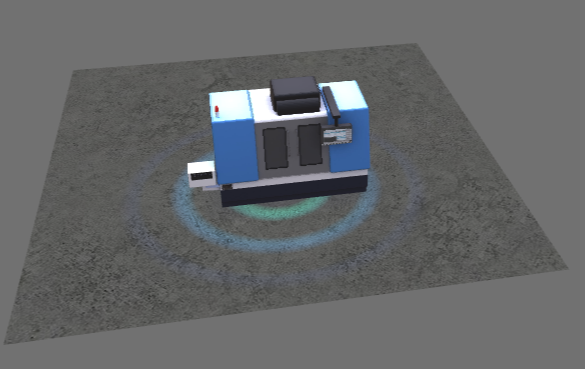

# 光影扩散(3D)
提示:
用户可通过imr.rippleShadow方法,让模型显示光影扩散效果。
//方法名:imr.rippleShadow 光影扩散
//参数1:meshName 模型名称[string]
//参数2:size 大小[number](3)
//参数3:scene 场景[object](_scene)
//使用方法
imr.rippleShadow('',8,_scene)

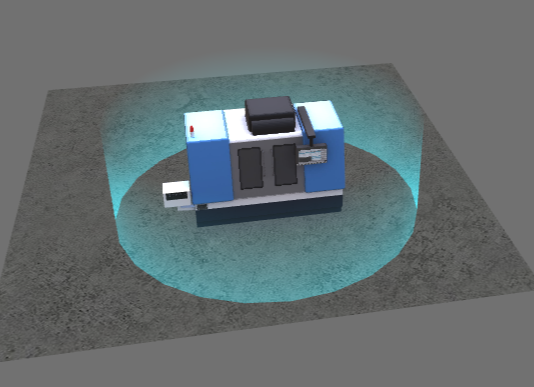

# 圆柱光影扩散(3D)
提示:
用户可通过imr.rippleCylindr方法,让模型显示圆柱光影扩散效果。
//方法名:imr.rippleCylindr 圆柱光影扩散
//参数1:meshName 模型名称[string]
//参数2:size 大小[number](3)
//参数3:speed 速度[number](10),设置0时不动画
//参数4:color 颜色[color]('#00ff00')
//参数5:scene 场景[object](_scene)
//使用方法
imr.rippleCylindr('',1.5,0,'#0DF0FF', _scene)

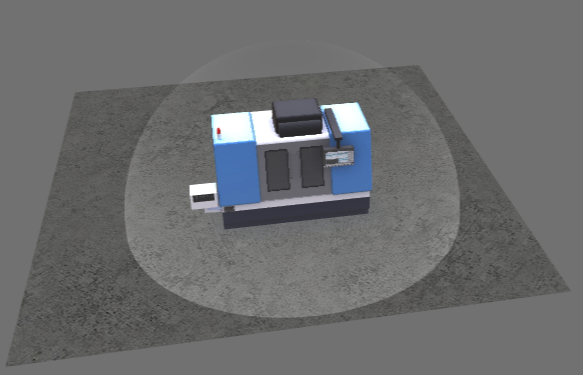

# 半球光影扩散(3D)
提示:
用户可通过imr.rippleHemisphere方法,让模型显示半球光影扩散效果。
//方法名:imr.rippleHemisphere 半球光影扩散
//参数1:meshName 模型名称[string]
//参数2:size 大小[number](3)
//参数3:speed 速度[number](10),设置0时不动画
//参数4:color 颜色[color]('#00ff00')
//参数5:scene 场景[object](_scene)
//使用方法
imr.rippleHemisphere('',2,5,'#ffffff',_scene)
# 立方体光影扩散(3D)
提示:
用户可通过imr.rippleBox方法,让模型显示立方体光影扩散效果。
//方法名:imr.rippleBox 立方体光影扩散
//参数1:meshName 模型名称[string]
//参数2:size 大小[number](3)

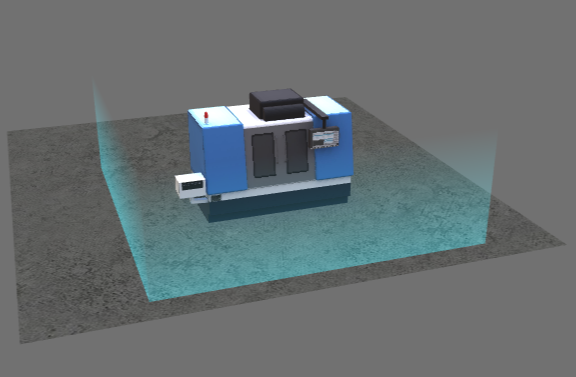

//参数3:speed 速度[number](10),设置0时不动画
//参数4:color 颜色[color]('#00ff00')
//参数5:scene 场景[object](_scene)
//使用方法
imr.rippleBox('',1.5,0,'#0DF0FF', _scene)

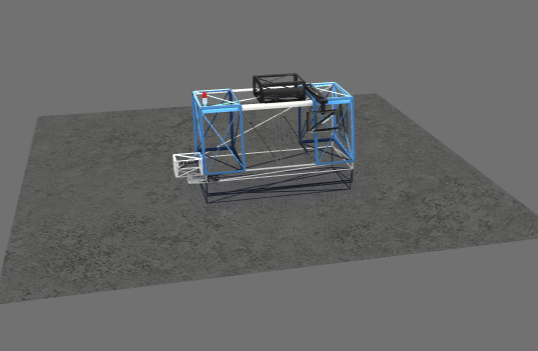

# 网状(3D)
提示:
用户可通过imr.wireframe方法,让模型显示网状效果。
//方法名:imr.wireframe 网状
//参数1:meshName 模型名称[string]
//参数2:color 颜色[string]('#FFFFFF')
//参数3:scene 场景[object](_scene)
//使用方法
imr.wireframe('','#FFFFFF',_scene)

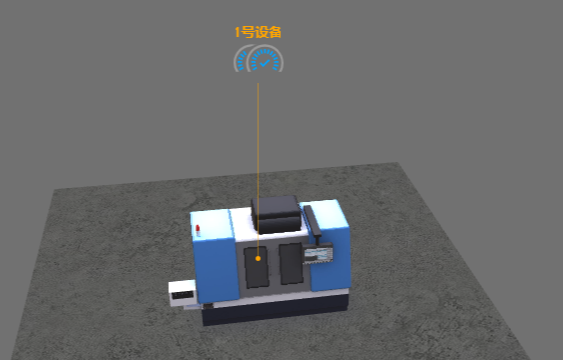

# 提示框(3D)
提示:
用户可通过imr.ethPanel方法,让模型显示提示框。
//方法名:imr.ethPanel 提示框
//参数1:meshName 模型名称[string]
//参数2:option 内容配置[object]
// {
// title:{
// text: '', //标题
// color: '' //标题颜色
// },
// content: [], //内容, 每个元素占据一行
// fontSize: 14, // 字体大小
// color: '#000', //字体颜色
// lineColor: 'rgba(0, 0, 0, 1)', // 提示框和模型连接线的颜色
// themeStyle: 1 //背景图片 1,2,3
// }
//参数3:imageOption 图片配置[object]
// {
// image: 'https://cloud.krmes.com/img/DataV/panel/panel4.svg',// 图片地址
// width: 208,
// height: 92,
// linkOffsetX: 200, // 偏移度x
// linkOffsetY: -200 // 偏移度y
// }
//参数4:scene 场景[object](_scene)
//返回 textFunReturn函数
//使用方法
var textFunReturn1 = imr.ethPanel('', {title:{text: '1号设备', color: 'Orange'}, content: ['当前功率:0KW', '当前功率:0KW'], fontSize: 14, color: '#000', lineColor: 'Orange', themeStyle: 1},{image: 'https://cloud.krmes.com/img/DataV/panel/panel4.svg',width: 200, height: 92, linkOffsetX: 200, linkOffsetY: -200}, ()=>{console.log('click')})
//关闭方法
textFunReturn1({ dispose: true })
# 模型旋转(3D)
提示:
用户可通过imr.rotateAnimation方法,让模型旋转。
//方法名:imr.rotateAnimation 模型旋转
//参数1:meshName 模型名称[string]
//参数2:axis 轴线[string]('x')
//参数3:rotationValue 数值[float](Math.PI*0.5)
//参数4:speed 速度[number](10)
//参数5:loop 是否循环[boolean](true)
//参数6:scene 场景[object](_scene)
//使用方法
var option = {
alpha: 0.5,
beta: 1.27,
radius: 11,
target: {
x: 0,
y: 0,
z: 0
}
}
imr.rotateAnimation('CNC11', 'y', Math.PI, 10, true)
# 移动摄像机(3D)
提示:
用户可通过imr.moveCamera方法,让摄像机移动。
//方法名:imr.moveCamera 移动摄像机
//参数1:option 目标坐标[object]
//参数2:callback 执行完回调[function]
//参数6:scene 场景[object](_scene)
//使用方法
var option = {
alpha: 0.5,
beta: 1.27,
radius: 11,
target: {
x: 0,
y: 0,
z: 0
}
}
imr.moveCamera(optionMenu, ()=>{}, _scene_contain2)
